HDR ISP

Image Signal Processor pipeline for High Dynamic Range Imaging Applications.
Suited For FPGA & Vision SoC targets.

Plug LumaIQ into your HDR ISP pipeline to instantly validate every tuning decision with objective, data-driven metrics at one Place

HDR Redefined

10xEngineers HDR Image Signal Processor interfaces with all modern HDR image sensors to maximize image detail and colour fidelity for your application. Our proprietary HDR algorithm chain captures true dynamic range from the scene artifact-free.

Features

Combine multiple exposure images (2F, 3F) in real-time

Supports up to 120dB High Dynamic Range imaging

Supports Dual Conversion Gain (DCG), Split Pixel / Split PD, DAG HDR sensors

Pipeline compatible with non-HDR image sensors

Multi-level Noise Reduction for crisp HDR rendering

Support for all your HDR sensor types

Our flexible HDR processing leverages the underlying single-exposure high dynamic range pixel technologies from the image sensors such as Dual Conversion Gain (DCG), Split Pixel / Photo Diode, Super Exposure, Clear HDR as well as supports multi-exposure methods like Staggered HDR, Digital Overlapping (DOL) HDR or Line-Interleaved (LI) HDR.

Meet LumaIQ - Your IQ Analysis Companion

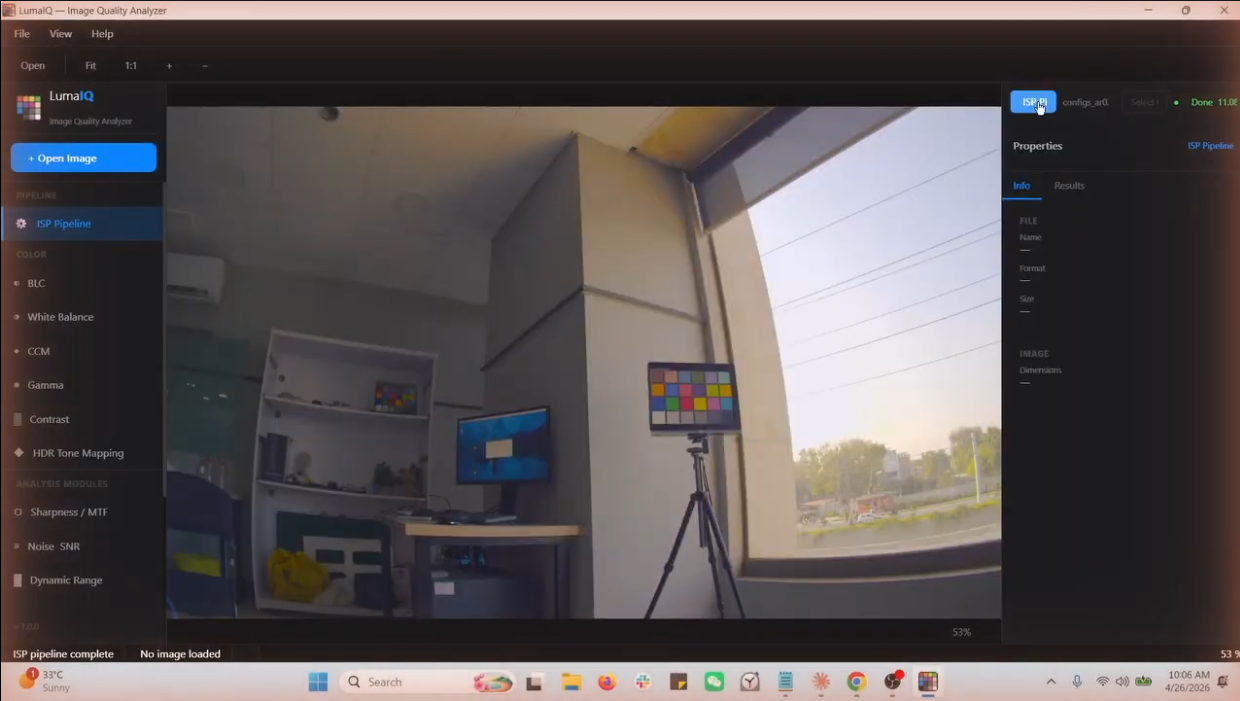

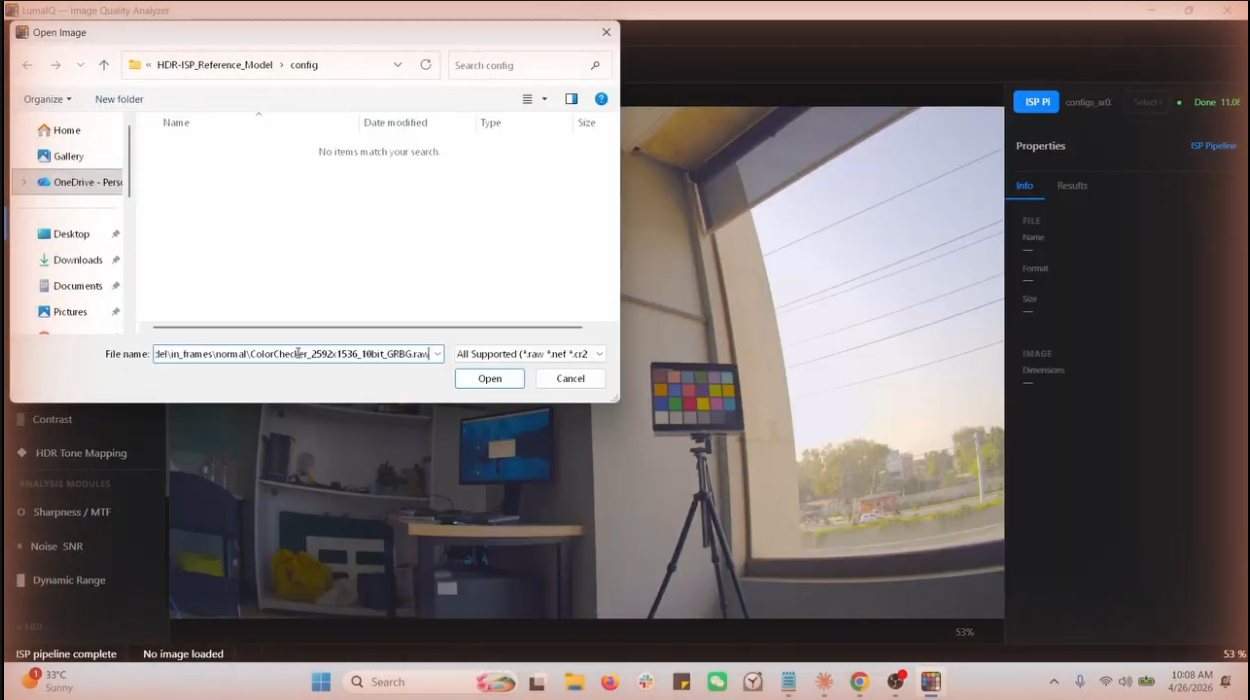

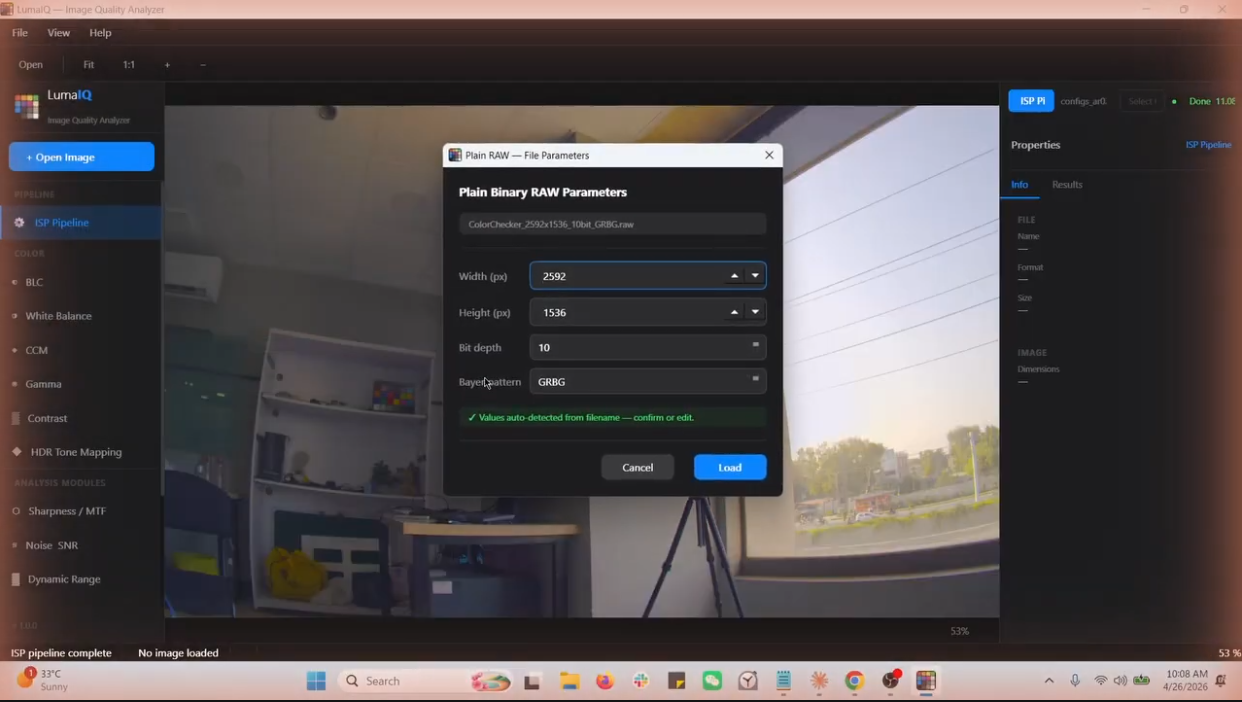

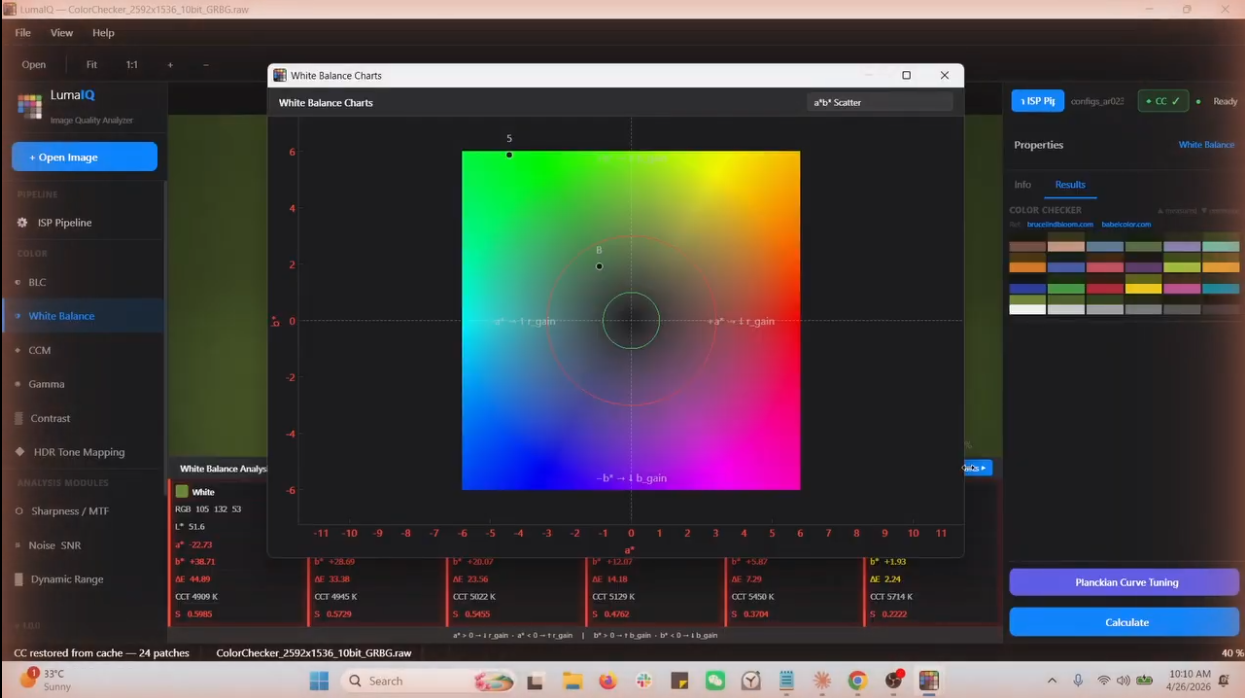

Once your HDR ISP pipeline is tuned and running, the next question is always the same: How good is the output, really? LumaIQ plugs directly into HDR ISP backend, reading your YAML configs, running your pipeline stages, and measuring the results across every critical IQ dimension, from noise and dynamic range to color accuracy and tone mapping fidelity, all without leaving a single environment. Where HDR ISP handles the processing, LumaIQ handles the validation: quantifying what your algorithm changes actually do, surfacing metrics like CIEDE2000 ΔE, MTF curves, and SNR-vs-luminance that tell you whether a tuning decision is genuinely better or just visually different. Here’s what that looks like in practice.

Comparison Results

Normal

HDR

Previous slide

Next slide

Normal

HDR

Right fit for your application and camera system

HDR Pipeline

Why Choose 10xE HDR ISP?

Whether you are looking for an ISP for high volume camera modules, or in need of an extreme performance 8K 30 FPS FPGA ISP for demanding Machine Vision & Surveillance application, or require upgrading your existing system with a modern image pipeline for your next generation camera, HDR ISP is the right fit for you.
