Infinite ISP
An Open Source Hardware Image Signal Processor Development Suite
Our full-stack ISP development solution provides a comprehensive package that includes algorithm research, RTL development and FPGA / ASIC implementation together with ISP Tuning Tool. The open-source ISP design package offers competitive image quality and performance of a baseline modern image signal processor.
Latest Updates
Infinite-ISP: An Open Source Hardware Image Signal Processor Platform for all Imaging Needs
While traditionally not available in the public domain, access to the complete
From Pixels to Perfection: A Glimpse at Infinite-ISP Tuning Tool
Introducing Infinite-ISP, a groundbreaking open-source Image Signal Processor (ISP) that offers an
Use our Dataset on #kaggle for Auto-White Balance
You can now see the result of our ongoing R&D efforts in
Infinite ISP Pipeline
Infinite ISP Ecosystem
Infinite-ISP is a hardware Image Signal Processor development suite, complete with an Algorithm Development Floating Point Model, a Fixed-Point Reference Model (Golden Model), an RTL Design, FPGA / ASIC implementation and ISP Tuning Tool application.
| Algorithm Model | Floating point ISP pipeline model |
| Reference Model | Bit-accurate fixed-point model |
| RTL ISP | Hardware ISP in Verilog |
| FPGA Binaries | FPGA Binaries (bitstream + firmware executable) with Infinite-ISP RTL optimized for AMD Xilinx Kria KV260 Kit |
| ISP Tuning Tool | ISP tuning tool (calibration, analysis, image quality) |
Combined with floating-point model and bit-accurate fixed-point model of an ISP pipeline implemented in hardware RTL and ported to an FPGA, Infinite-ISP is a comprehensive development suite that caters to the needs of the imaging and vision community, be it professionals, researchers or open source enthusiasts.

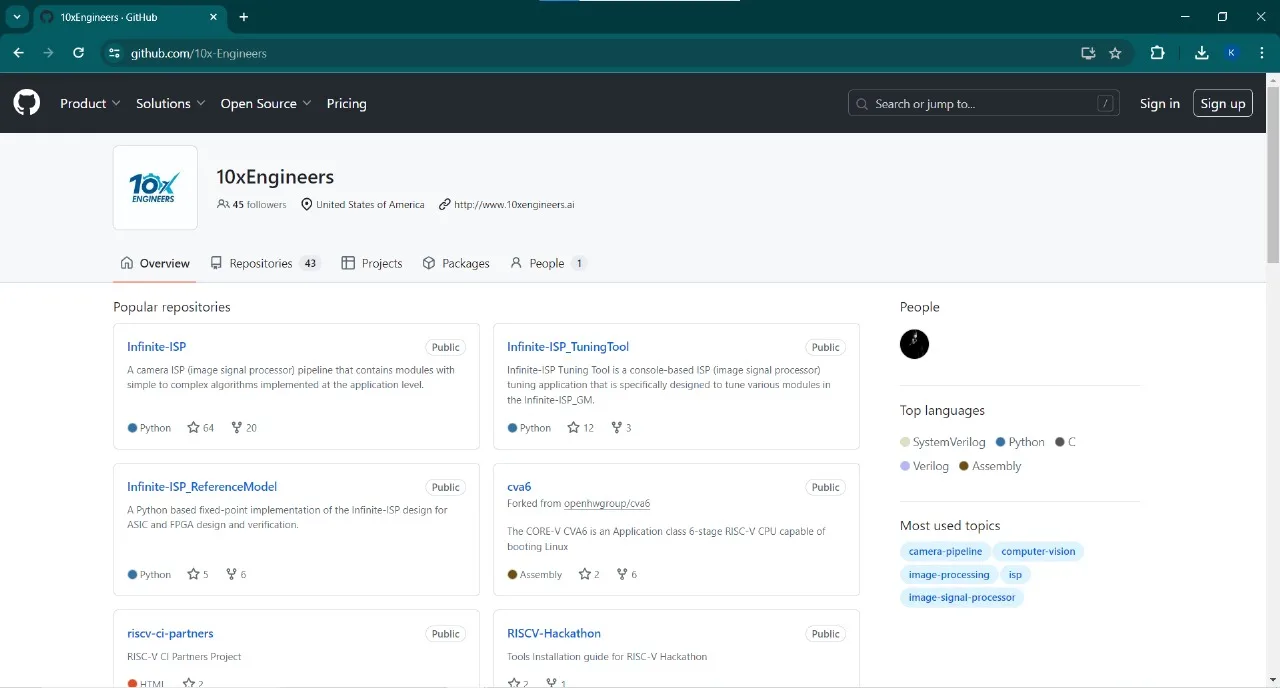

Contribute on GitHub
Join a comprehensive Image Signal Processor development ecosystem today by contributing to Infinite-ISP GitHub repository.
Infinite-ISP Starter Kits
 |
 |
Kria KV260 ISP Reference Design | Ti180J484 ISP Reference Design |
| 4 Megapixel 10-bit Image Signal Processor for Bayer Image Sensors | 2 Megapixel 10-bit Image Signal Processor for Bayer Image Sensors |
RGB/YUV output
|
RGB/YUV output
|
All Bayer image sensors up to 4 Megapixels
|
All Bayer image sensors up to 2 Megapixels
|
| FPGA Binaries: Release v1.5 (EI 2025) | FPGA Binaries: Release v1.5 (EI 2025) |

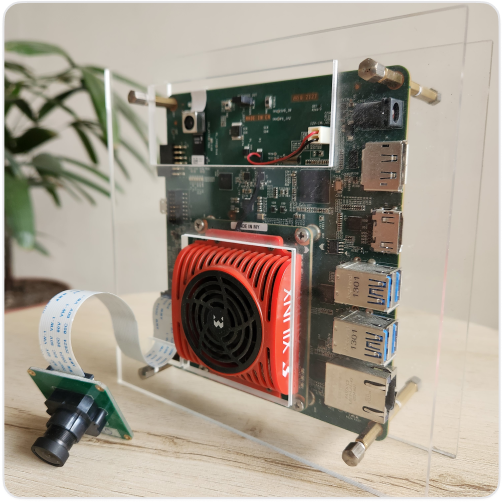

Infinite-ISP Starter Kit - AMD Xilinx Kria KV260
Camera-ready solution available with Infinite-ISP Kria SOM
Markets & Applications
Develop and deploy your vision solution and camera product with our ready-to-use Infinite-ISP Kria Reference Design. Infinite-ISP can be seamlessly integrated into your automotive, surveillance, broadcast, cinematic & consumer camera systems.
ISP optimized for AMD Kria
Whether your camera system requires working with AMD Xilinx Kria SOM or the complete Kria KV260 Kit, Infinite-ISP comes paired with both, offering seamless integration and quick time-to-market.
End-to-end Camera Solution Demonstration
Check out our Infinite-ISP Release v1.5 for AMD Xilinx Kria K26 SOM / Kria KV260 AI Starter Kit. The FPGA Binaries work out of the box for Kria KV260 AI Starter Kit and implement an end-to-end camera solution with the Onsemi AR1335 image sensor (provided in the AMD Xilinx Kria Kit’s official accessory pack), the Omnivision OV5647 image sensor or the Sony IMX219 image sensor.

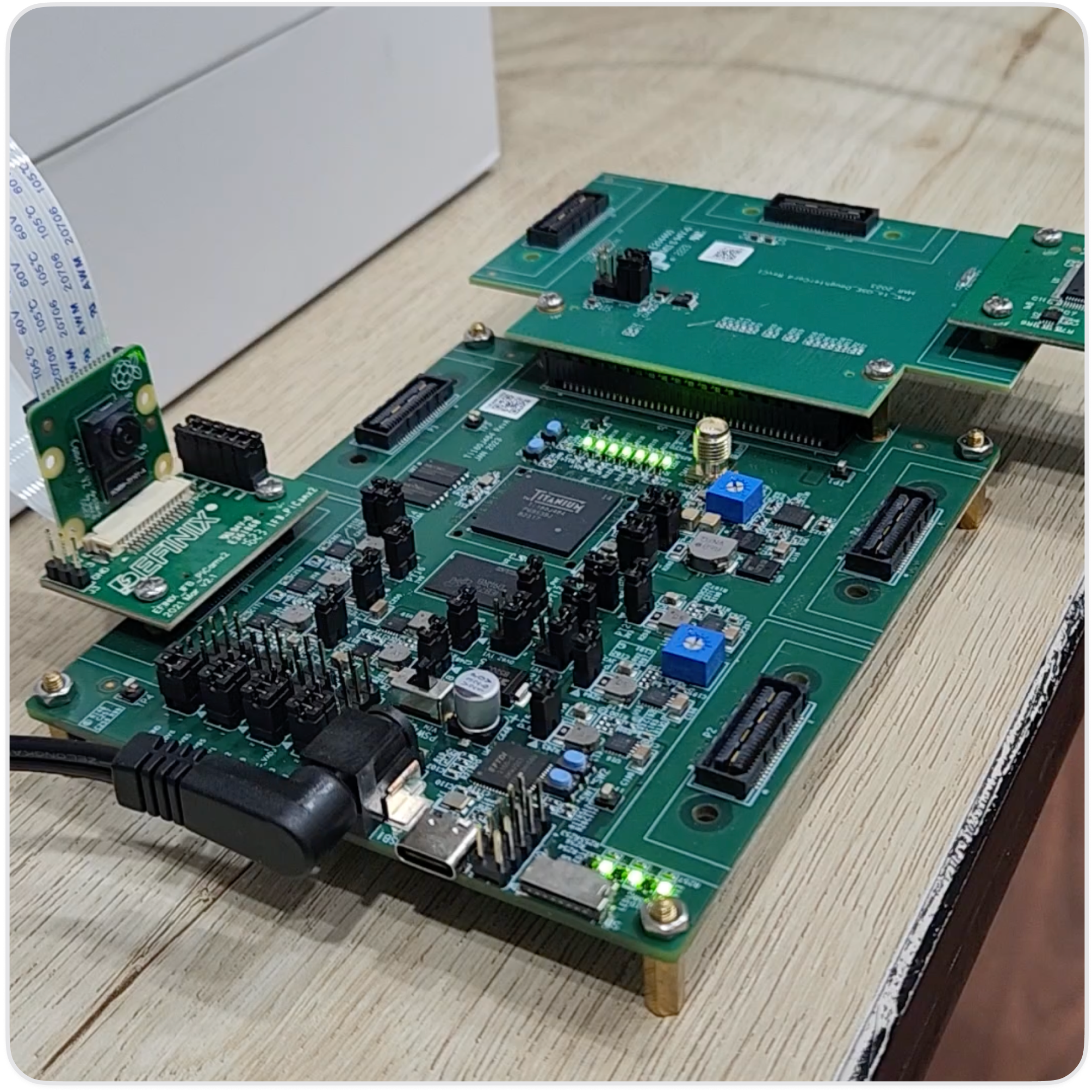

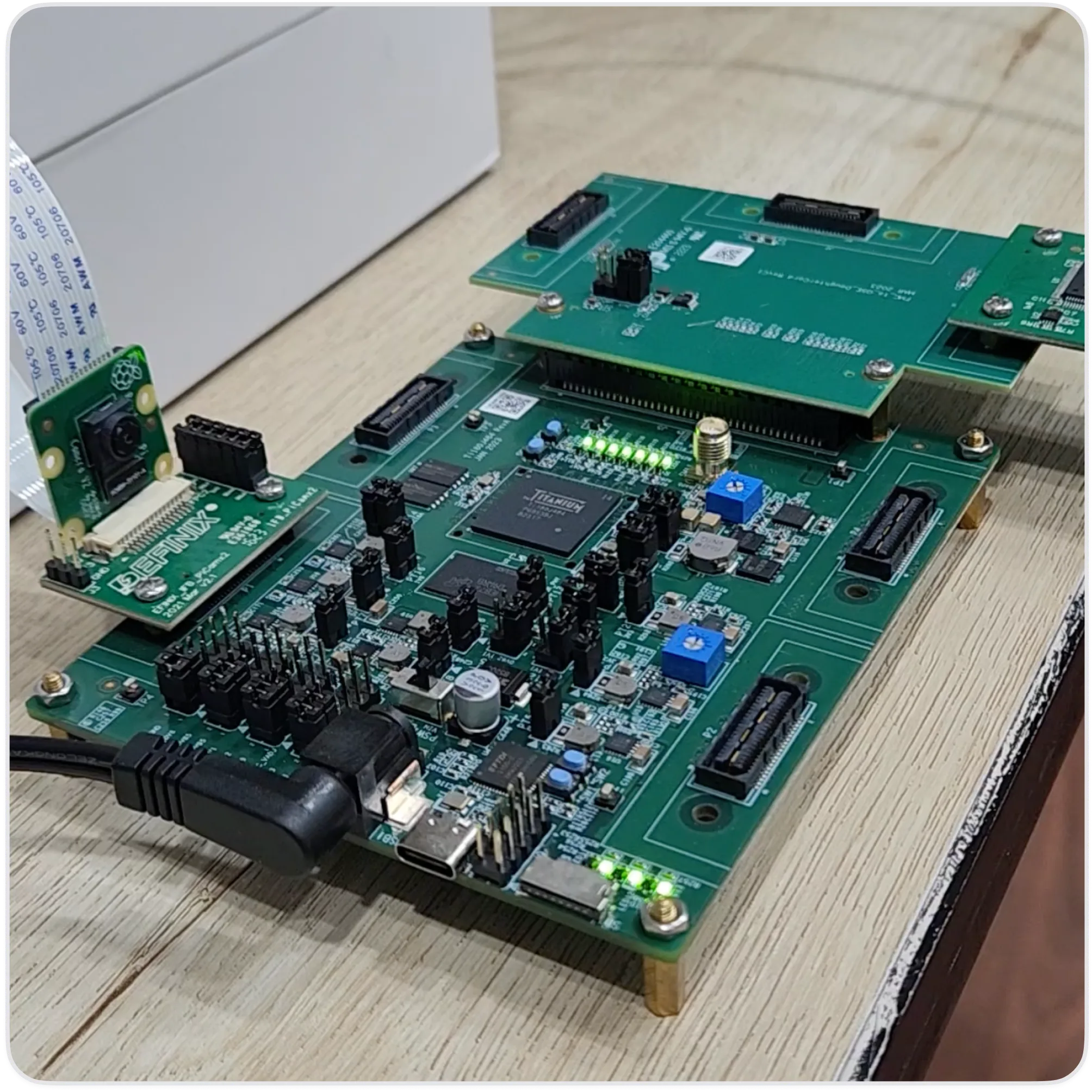

Infinite-ISP Starter Kit - Efinix Ti180 J484
Infinite-ISP Reference Design is also available for Efinix FPGA!
1080p Imaging Kit
The Infinite-ISP Titanium Ti180 J484 Development Kit is an end-to-end 1080p imaging system demonstration on Efinix FPGA. Users can capture a stream from the Sony IMX219 image sensor module (Raspberry Pi v2) provided with the Kit and obtain a processed output stream on an HDMI monitor.
UHD Vision Kit
Infinite-ISP Edge Vision SoC (EVSoC) on Ti180 J484 Kit offers a UHD (1080p) @ 20fps customizable and ready-to-use embedded vision system for customers willing to develop camera systems using Efinix FPGAs.
Infinite-ISP pairs with a RISC-V CPU to deliver a complete sensor-to-display camera system. Check out the Infinite-ISP Release v1.5 for FPGA Binaries that works out of the box for Ti180 J484 kit.
Have questions about the right ISP for your target application? Our team is ready to assist!
Infinite-ISP Tutorials
Infinite-ISP Tutorial 1: Getting Started
Welcome to our open-source project on image signal processor (ISP) pipeline known
Infinite-ISP Tutorial 2: Working with Infinite-ISP
This tutorial will walk you through various image processing tasks, including the

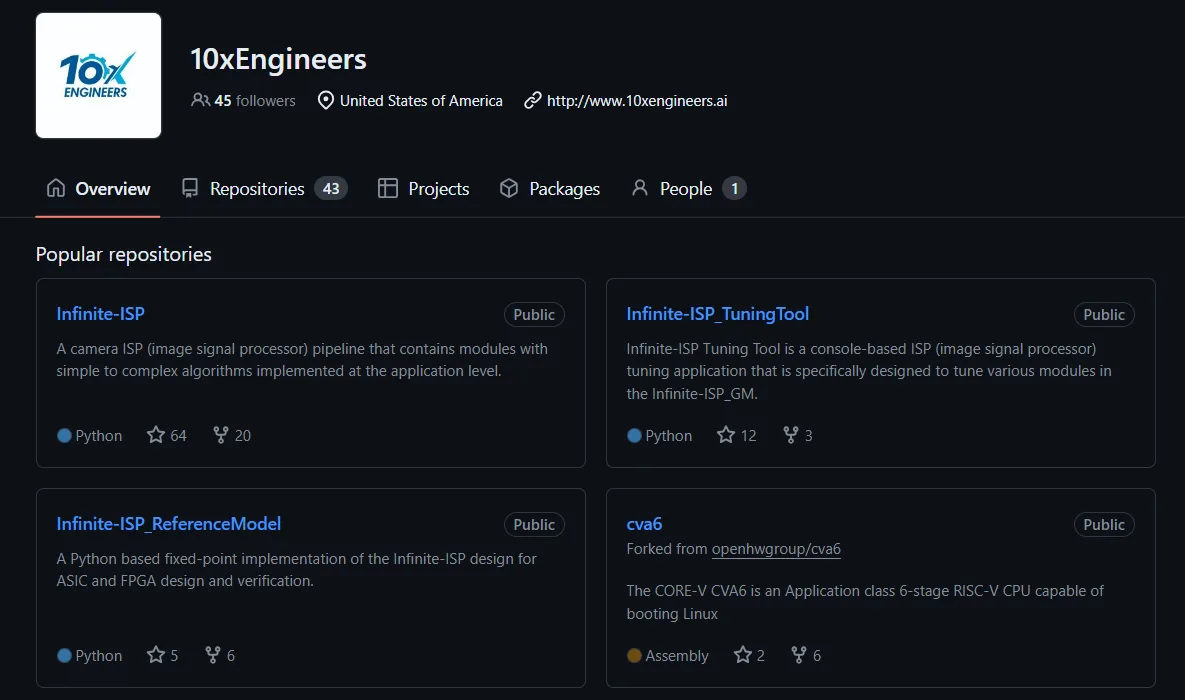

Infinite-ISP Tutorial 3: Contributing to Infinite-ISP
Infinite-ISP, an open-source project, provides a versatile platform for processing raw images.
